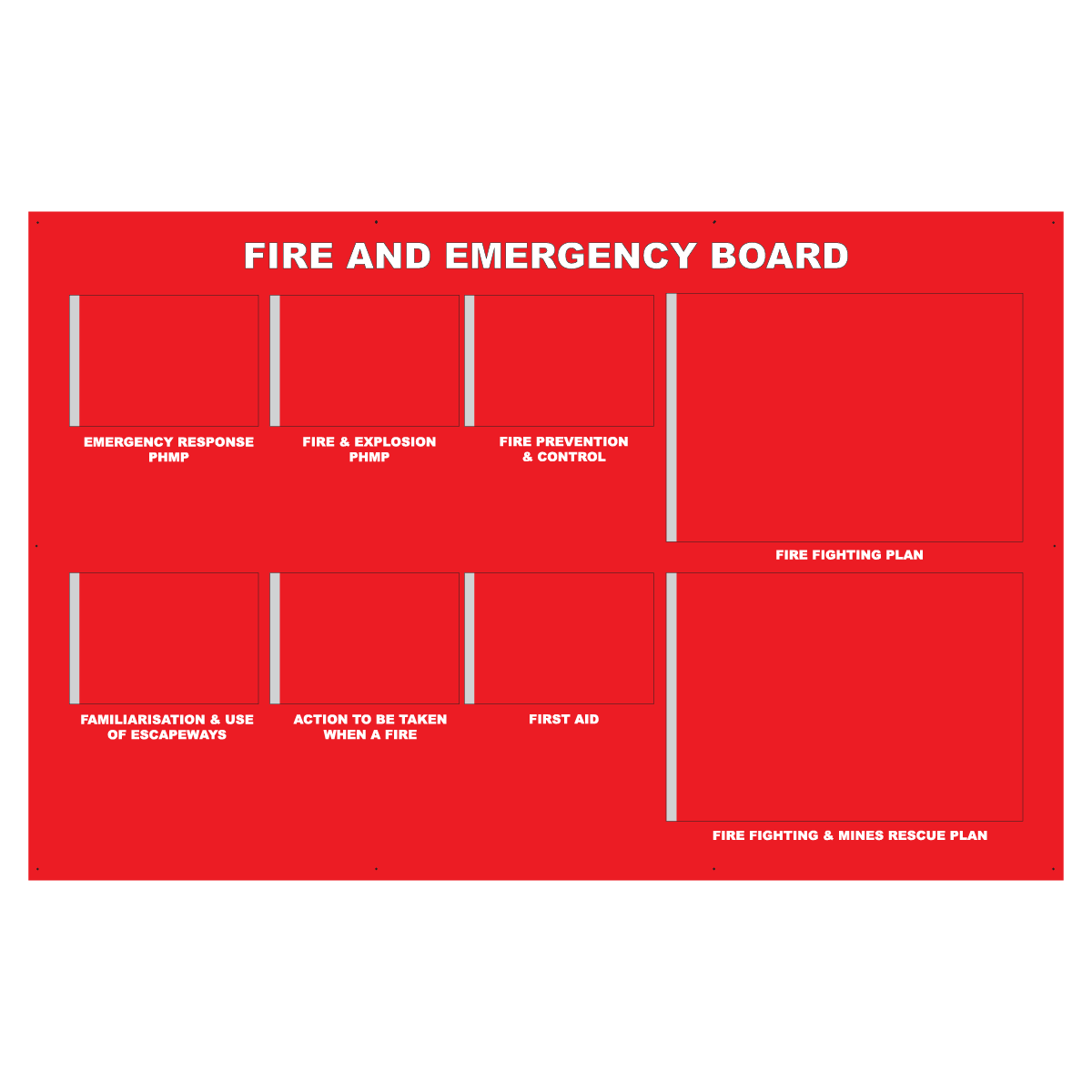

Mine Fire & Emergency Response Management Board MFEB2617 2600 × 1680mm

Mine Fire & Emergency Response Management Board

The Global Safety Industries Mine Fire & Emergency Response Management Board is a roll-up visual management system designed to centralise emergency procedures, Principal Hazard Management Plans (PHMPs), mine rescue information, fire response documentation and site plans within one highly visible location.

Designed for underground mines, processing facilities and industrial workplaces, the system provides dedicated storage for emergency documentation and large-format drawings while helping personnel quickly locate critical information during routine operations and emergency situations.

Manufactured in Australia from heavy-duty 440gsm industrial PVC using High Frequency (HF) welded construction, the 2600 × 1680mm finished board incorporates Class 1W CL400 red retroreflective material, six A3 document holders, two A0 drawing holders and interchangeable reflective identification panels.

Main Advantage

The Mine Fire & Emergency Response Management Board brings critical emergency information together within one organised and highly visible management system.

Rather than relying on separate noticeboards, drawings and emergency documents across multiple locations, personnel can access PHMP information, emergency procedures, evacuation plans, fire plans, mine rescue information and engineering drawings from one central emergency information station. Interchangeable reflective headings also allow the system to be updated as operational requirements change.

Standard Document Configuration

• 6 × A3 heavy-duty clear flat document holders
• 2 × A0 heavy-duty clear drawing holders
• Hook-and-loop side access
• Custom printed Fire & Emergency Board header

The combination of A3 document holders and large A0 drawing pockets provides dedicated space for emergency procedures, mine layouts, evacuation diagrams, fire plans, site drawings and other operational information that needs to remain protected and accessible.

Interchangeable Reflective Identification Panels

Replaceable reflective hook-and-loop identification panels can be used to organise different emergency procedures, PHMP information and response documentation.

• Emergency Response PHMP
• Fire & Explosion PHMP
• Fire Prevention & Control
• Familiarisation & Use of Escapeways
• Action to be Taken When a Fire
• First Aid
• Fire Fighting Plan
• Fire Fighting & Mines Rescue Plan

Features & Benefits

• 2600 × 1680mm finished size
• Heavy-duty 440gsm industrial PVC construction
• High Frequency (HF) welded construction
• Class 1W CL400 red retroreflective material
• Six A3 clear document holders
• Two A0 clear drawing holders
• Hook-and-loop document access
• Interchangeable reflective identification panels
• Supports PHMP and emergency procedure display
• Fire response and mine rescue information storage
• Waterproof construction
• 10 reinforced Size 4 brass eyelets
• Double stitched hem on all four sides
• Flexible roll-up design for transport and storage
• Mine site-specific layouts available
• OEM manufacturing available
• Australian made

Emergency Information & PHMP Management

The board is designed to provide a central location for emergency information that personnel may need to identify quickly, including Principal Hazard Management Plans, fire and explosion response information, evacuation plans, escapeway information, mine rescue procedures and emergency contact details.

Large-format A0 holders also provide space for mine drawings, site plans, engineering drawings and emergency layouts, while interchangeable reflective headings help maintain a clearly structured information system as documentation or site requirements change.

Suitable Industries & Applications

Suitable for underground coal mines, hard rock mining, longwall operations, CHPP facilities, underground workshops, mine surface infrastructure, industrial processing plants, power stations, utilities, ports, rail infrastructure, oil and gas facilities, manufacturing plants and defence installations.

Common applications include fire emergency procedures, Principal Hazard Management Plans, fire and explosion response, emergency evacuation plans, escapeway information, mine rescue plans, fire fighting plans, emergency contacts, mine drawings, site plans, engineering drawings and emergency communications.

Material & Construction

The Mine Fire & Emergency Response Management Board is manufactured from heavy-duty 440gsm industrial PVC using High Frequency (HF) welded construction, with heavy-duty UV stabilised clear PVC used for the integrated document and drawing holders.

Class 1W CL400 red retroreflective material provides highly visible identification, while industrial hook-and-loop fasteners allow documents and interchangeable identification panels to be accessed and updated when required.

Ten reinforced Size 4 brass eyelets provide secure mounting points, while the double stitched perimeter and flexible roll-up construction support repeated installation, handling, transport and storage.

Custom Configurations

• Company branding
• Mine branding
• Emergency response procedures
• Principal Hazard Management Plans (PHMPs)
• Mine rescue information
• Emergency contact lists
• Site evacuation plans
• Escapeway maps
• Fire plans
• Emergency drawings
• First aid information
• A0 engineering drawing holders
• Additional A3 document holders
• Whiteboard communication panels
• QR codes
• Reflective safety messages
• Department colour coding
• Custom sizes

Request a Quote

Call 1300 133 447 or email [email protected] to discuss your emergency management requirements, PHMP layouts, document configurations, reflective identification panels or custom mine site system.

We guarantee to beat any competitor price by 5% on Australian made quality.
