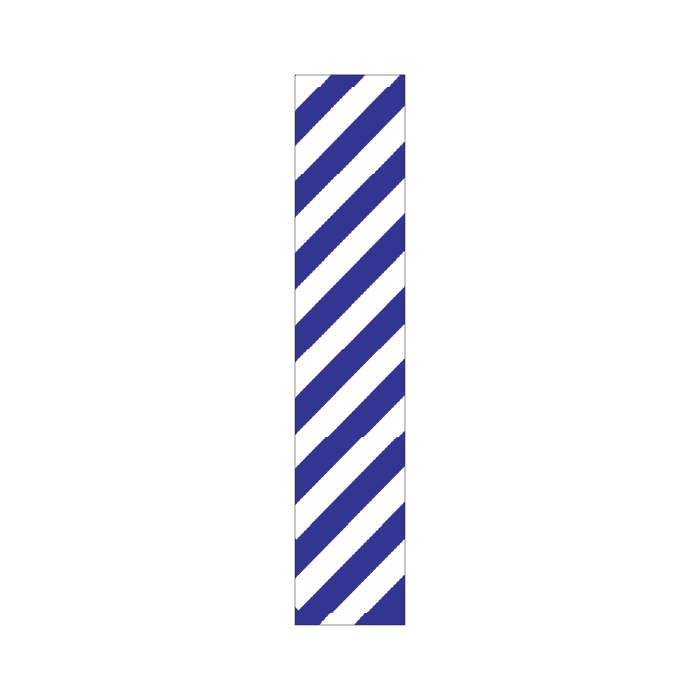

Global Safety Industries Blue Hazard Reflective Delineation Sleeves are Australian Made, double-sided reflective sleeves designed to combine high-visibility post and bollard delineation with clear Blue Hazard identification. Manufactured from CL400 Class 1W retroreflective material, the sleeves provide a large reflective identification surface for compatible posts, bollards and guide markers used throughout mining, construction, civil and industrial environments.

Each sleeve combines a CL400 Class 1W reflective outer with a reinforced PVC vinyl liner and fuse-welded construction for strength, flexibility and repeated outdoor use. The Blue Hazard identification is digitally printed onto the reflective sleeve, allowing hazard identification and reflective delineation to be incorporated into the same flexible product.

Available in five standard sizes, the Blue Hazard Reflective Delineation Sleeve range can be configured for different post, guide marker and bollard applications. The two-sided identification and reflective construction make the sleeve suitable for sites where designated hazards, work areas or site-specific hazard points need to remain prominent during daytime, low-light and nighttime operations.

Main Advantage

The Blue Hazard Reflective Delineation Sleeve combines hazard identification and reflective post delineation within one product. Instead of relying on a plain post with a small reflective patch or separate identification label, the sleeve creates an extended reflective surface while providing Blue Hazard identification directly on the post or bollard.

Blue Hazard Identification

The Blue Hazard configuration is designed for locations where a clearly identifiable hazard marker is required alongside increased post or bollard visibility. The printed configuration provides a prominent Blue Hazard identification point while the surrounding reflective surface increases the visual prominence of the delineated location.

This makes the sleeve suitable for mining operations, construction and civil sites, industrial facilities, utility areas and other controlled environments where site-specific hazards or designated hazard locations need to be clearly identified as part of the site's established identification and delineation system.

Available Blue Hazard Reflective Sleeve Sizes

• 125 × 750mm – designed for Steel Flex and Star Picket Guide Posts
• 140 × 500mm – suited to Semi-Rigid and PVC Plastic Guide Posts
• 140 × 1000mm – provides extended reflective coverage for increased post visibility
• 200 × 750mm – suited to PU Poly Guide Posts, bollards and larger supports
• 200 × 1000mm – extended coverage for PU Poly Guide Posts, T Top Bollards and larger post applications
• Custom sizes can be manufactured for project-specific requirements

Material & Construction

The reflective outer surface is manufactured from CL400 Class 1W retroreflective material and supported by a reinforced PVC vinyl liner. Fuse-welded construction creates a flexible sleeve designed for demanding mining, construction, civil and industrial applications and repeated outdoor use.

The flexible construction allows the sleeve to fit over compatible posts and bollards rather than relying on exposed adhesive reflective tape. This creates a larger reflective area while also providing space for the printed Blue Hazard identification.

Printed Reflective Blue Hazard Identification

The Blue Hazard identification is digitally printed onto the reflective sleeve, combining hazard identification, site communication and reflective visibility within one product configuration.

The double-sided configuration allows the Blue Hazard identification and reflective surface to be presented from opposing viewing directions, making the sleeve particularly useful where vehicles, mobile equipment or personnel may approach the delineation point from different directions.

Features & Benefits

• CL400 Class 1W retroreflective material
• Blue Hazard identification
• Full-colour digital printing
• Double-sided reflective and printed configuration
• Extended reflective surface for post and bollard visibility
• Reinforced PVC vinyl liner for additional support and durability
• Fuse-welded flexible sleeve construction
• Fits over compatible posts, bollards and guide markers
• Five standard sleeve sizes available
• Custom sizes available for project-specific applications
• Combines reflective delineation with site-specific hazard identification
• Australian Made by Global Safety Industries

Suitable Industries & Applications

Blue Hazard Reflective Delineation Sleeves are suitable for mining, construction, civil, utilities, facilities and industrial environments where compatible posts or bollards require increased visibility together with site-specific hazard identification.

Common applications include mine and industrial work areas, construction and civil sites, utility facilities, designated hazard points, operational areas, internal site routes, controlled work zones, bollard identification and site-specific hazard delineation.

CL400 Class 1W Reflective Material

The sleeve is manufactured from CL400 Class 1W retroreflective material to provide an extended reflective surface along the compatible post, bollard or guide marker. The larger reflective area helps the Blue Hazard identification point remain visually prominent where increased visibility is required.

Retroreflective material returns incident light towards its source, helping the sleeve and printed Blue Hazard identification become more visible when illuminated by vehicle headlights, mobile equipment lighting or other directed lighting during low-light and nighttime operations.

Five Sizes for Different Post & Bollard Applications

The Blue Hazard Reflective Delineation Sleeve range provides five standard configurations for different support types. The 125 × 750mm sleeve is designed for Steel Flex and Star Picket Guide Posts, while the 140mm-wide configurations suit Semi-Rigid and PVC Plastic Guide Posts.

The wider 200mm configurations are suited to PU Poly Guide Posts, bollards and larger supports. The 1000mm-long configurations provide extended reflective coverage where a larger Blue Hazard identification surface is required.

Technical Specifications

• Product: Blue Hazard Reflective Delineation Sleeve
• Identification: Blue Hazard
• Reflective Material: CL400 Class 1W retroreflective material
• Visibility: Double-sided reflective construction
• Printing: Full-colour digital printing
• Identification Configuration: Two-sided
• Liner: Reinforced PVC vinyl liner
• Construction: Fuse-welded flexible sleeve
• Standard Sizes: 125 × 750mm, 140 × 500mm, 140 × 1000mm, 200 × 750mm and 200 × 1000mm
• Custom Sizes: Available for project-specific requirements
• Compatible Applications: Steel Flex Guide Posts, Star Picket Guide Posts, Semi-Rigid Guide Posts, PVC Plastic Guide Posts, PU Poly Guide Posts, T Top Bollards and compatible larger supports
• Applications: Hazard identification, reflective delineation, bollard identification and worksite demarcation
• Manufacturing Origin: Australian Made

Site & Public-Road Applications

A Blue Hazard sleeve is an identification and delineation product and should not automatically be treated as a substitute for mandatory hazard signs, warning signs, barriers, exclusion controls, traffic signs or other safety measures required under a site safety-management system, traffic-management plan or applicable regulatory requirements. The meaning assigned to colour-coded hazard identification may also vary between sites and applications. Where the sleeve is proposed for a regulated worksite, mining or public-road application, confirm the required colour coding, signage, placement and project specification with the responsible site operator, safety professional or relevant authority before use.

Frequently Asked Questions

What is a Blue Hazard Reflective Delineation Sleeve?

It is a flexible, double-sided reflective sleeve designed to fit over compatible posts, bollards and guide markers while providing Blue Hazard identification and increased reflective visibility.

What reflective material is used?

The sleeve is manufactured using CL400 Class 1W retroreflective material combined with a reinforced PVC vinyl liner and fuse-welded construction.

What sizes are available?

Five standard sizes are available: 125 × 750mm, 140 × 500mm, 140 × 1000mm, 200 × 750mm and 200 × 1000mm. Custom sizes can also be manufactured for project-specific requirements.

Is the Blue Hazard identification presented on both sides?

Yes. The configuration supports two-sided Blue Hazard identification together with double-sided reflective visibility.

Which posts and bollards can the sleeves be used with?

The range includes sizes designed for Steel Flex and Star Picket Guide Posts, Semi-Rigid and PVC Plastic Guide Posts, PU Poly Guide Posts, T Top Bollards and other compatible post or bollard applications.

Where can Blue Hazard Reflective Delineation Sleeves be used?

Typical applications include mining operations, construction and civil sites, industrial facilities, utility areas, designated hazard points and other controlled environments where site-specific hazard identification and reflective delineation are required.

Does a Blue Hazard sleeve replace mandatory hazard or safety signage?

Not automatically. Worksites can have specific hazard signage, colour-coding, exclusion and safety requirements. The intended meaning and required placement should be confirmed against the site's established safety system and applicable project requirements before deployment.

Are Blue Hazard Reflective Delineation Sleeves Australian Made?

Yes. Global Safety Industries manufactures the Reflective Delineation Sleeve range in Australia.

Request a Quote

Call 1300 133 447 or email [email protected] to discuss sleeve sizes, printed messages, custom configurations, project requirements or bulk order pricing.
