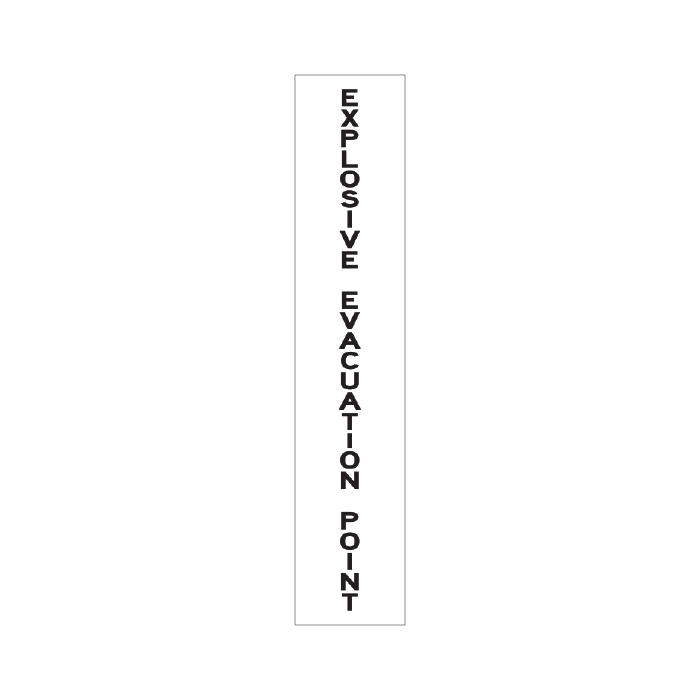

Global Safety Industries Explosive Evacuation Point Reflective Delineation Sleeves are Australian Made, double-sided reflective sleeves designed to combine high-visibility post and bollard delineation with a clear Explosive Evacuation Point identification message. Manufactured from CL400 Class 1W retroreflective material, the sleeves provide a large reflective identification surface for compatible posts, bollards and guide markers used to identify designated evacuation points within mining, quarrying and controlled industrial environments.

Each sleeve combines a CL400 Class 1W reflective outer with a reinforced PVC vinyl liner and fuse-welded construction for strength, flexibility and repeated outdoor use. The Explosive Evacuation Point message is digitally printed onto the reflective sleeve, allowing evacuation-point identification and reflective delineation to be incorporated into the same flexible product.

Available in five standard sizes, the Explosive Evacuation Point Reflective Delineation Sleeve range can be configured for different post, guide marker and bollard applications. The two-sided message and reflective construction make the sleeve suitable for designated locations where personnel need to readily identify an established evacuation point as part of a site-specific explosives, blasting or emergency-management procedure.

Main Advantage

The Explosive Evacuation Point Reflective Delineation Sleeve combines evacuation-point identification and reflective post delineation within one product. Instead of relying on a plain post with a small reflective patch or separate identification label, the sleeve creates an extended reflective surface while displaying the Explosive Evacuation Point message directly on the compatible post or bollard.

Explosive Evacuation Point Identification

The Explosive Evacuation Point configuration is designed for locations where a designated evacuation point needs to be clearly identified alongside increased post or bollard visibility. The printed message provides a prominent identification marker while the surrounding reflective surface increases the visual prominence of the delineation point.

This makes the sleeve suitable for mining operations, quarries, blasting areas and other controlled industrial environments where an Explosive Evacuation Point forms part of an established site-specific explosives management, blasting or emergency-response procedure.

Available Explosive Evacuation Point Reflective Sleeve Sizes

• 125 × 750mm – designed for Steel Flex and Star Picket Guide Posts
• 140 × 500mm – suited to Semi-Rigid and PVC Plastic Guide Posts
• 140 × 1000mm – provides extended reflective coverage for increased post visibility
• 200 × 750mm – suited to PU Poly Guide Posts, bollards and larger supports
• 200 × 1000mm – extended coverage for PU Poly Guide Posts, T Top Bollards and larger post applications
• Custom sizes can be manufactured for project-specific requirements

Material & Construction

The reflective outer surface is manufactured from CL400 Class 1W retroreflective material and supported by a reinforced PVC vinyl liner. Fuse-welded construction creates a flexible sleeve designed for demanding mining, quarrying and industrial applications and repeated outdoor use.

The flexible construction allows the sleeve to fit over compatible posts and bollards rather than relying on exposed adhesive reflective tape. This creates a larger reflective area while also providing space for the printed Explosive Evacuation Point identification message.

Printed Reflective Explosive Evacuation Point Message

The Explosive Evacuation Point message is digitally printed onto the reflective sleeve, combining site identification and reflective visibility within one product configuration.

The double-sided configuration allows the Explosive Evacuation Point message and reflective surface to be presented from opposing viewing directions, making the sleeve useful where personnel, vehicles or mobile equipment may approach the designated point from different directions.

Features & Benefits

• CL400 Class 1W retroreflective material
• Explosive Evacuation Point identification message
• Full-colour digital printing
• Double-sided reflective and printed configuration
• Extended reflective surface for post and bollard visibility
• Reinforced PVC vinyl liner for additional support and durability
• Fuse-welded flexible sleeve construction
• Fits over compatible posts, bollards and guide markers
• Five standard sleeve sizes available
• Custom sizes available for project-specific applications
• Combines reflective delineation with evacuation-point identification
• Australian Made by Global Safety Industries

Suitable Industries & Applications

Explosive Evacuation Point Reflective Delineation Sleeves are suitable for mining, quarrying, blasting and heavy industrial environments where compatible posts or bollards require increased visibility together with clear identification of a designated evacuation location.

Common applications include designated explosive evacuation points, blasting-area evacuation locations, mine and quarry operational areas, controlled work zones, assembly locations, emergency-response points, bollard identification and site-specific evacuation-point delineation.

CL400 Class 1W Reflective Material

The sleeve is manufactured from CL400 Class 1W retroreflective material to provide an extended reflective surface along the compatible post, bollard or guide marker. The larger reflective area helps the designated Explosive Evacuation Point remain visually prominent where increased visibility is required.

Retroreflective material returns incident light towards its source, helping the sleeve and printed Explosive Evacuation Point message become more visible when illuminated by vehicle headlights, mobile equipment lighting or other directed lighting during low-light and nighttime operations.

Five Sizes for Different Post & Bollard Applications

The Explosive Evacuation Point Reflective Delineation Sleeve range provides five standard configurations for different support types. The 125 × 750mm sleeve is designed for Steel Flex and Star Picket Guide Posts, while the 140mm-wide configurations suit Semi-Rigid and PVC Plastic Guide Posts.

The wider 200mm configurations are suited to PU Poly Guide Posts, bollards and larger supports. The 1000mm-long configurations provide extended reflective coverage where a larger Explosive Evacuation Point identification surface is required.

Technical Specifications

• Product: Explosive Evacuation Point Reflective Delineation Sleeve
• Message: Explosive Evacuation Point
• Reflective Material: CL400 Class 1W retroreflective material
• Visibility: Double-sided reflective construction
• Printing: Full-colour digital printing
• Message Configuration: Two-sided
• Liner: Reinforced PVC vinyl liner
• Construction: Fuse-welded flexible sleeve
• Standard Sizes: 125 × 750mm, 140 × 500mm, 140 × 1000mm, 200 × 750mm and 200 × 1000mm
• Custom Sizes: Available for project-specific requirements
• Compatible Applications: Steel Flex Guide Posts, Star Picket Guide Posts, Semi-Rigid Guide Posts, PVC Plastic Guide Posts, PU Poly Guide Posts, T Top Bollards and compatible larger supports
• Applications: Evacuation-point identification, reflective delineation, bollard identification and site-specific worksite demarcation
• Manufacturing Origin: Australian Made

Site & Public-Road Applications

An Explosive Evacuation Point sleeve is an identification and delineation product and should not automatically be treated as a substitute for mandatory explosives signage, emergency signage, evacuation plans, exclusion controls, barriers, alarms, communications or other safety measures required under a site's explosives-management, blasting or emergency-response procedures. The location, meaning and required use of an Explosive Evacuation Point should be established by the responsible site operator and applicable site procedures. Where the sleeve forms part of a regulated mining, quarrying, blasting or public-road environment, confirm the required signage, placement and project specification with the responsible site operator, safety professional or relevant authority before use.

Frequently Asked Questions

What is an Explosive Evacuation Point Reflective Delineation Sleeve?

It is a flexible, double-sided reflective sleeve designed to fit over compatible posts, bollards and guide markers while displaying an Explosive Evacuation Point identification message and providing increased reflective visibility.

What reflective material is used?

The sleeve is manufactured using CL400 Class 1W retroreflective material combined with a reinforced PVC vinyl liner and fuse-welded construction.

What sizes are available?

Five standard sizes are available: 125 × 750mm, 140 × 500mm, 140 × 1000mm, 200 × 750mm and 200 × 1000mm. Custom sizes can also be manufactured for project-specific requirements.

Is the Explosive Evacuation Point message printed on both sides?

Yes. The printed configuration supports a two-sided Explosive Evacuation Point message together with double-sided reflective visibility.

Which posts and bollards can the sleeves be used with?

The range includes sizes designed for Steel Flex and Star Picket Guide Posts, Semi-Rigid and PVC Plastic Guide Posts, PU Poly Guide Posts, T Top Bollards and other compatible post or bollard applications.

Where can Explosive Evacuation Point Reflective Delineation Sleeves be used?

Typical applications include designated evacuation points within mining, quarrying, blasting and controlled industrial environments where an Explosive Evacuation Point forms part of an established site-specific safety or emergency-management procedure.

Does the sleeve replace required explosives or emergency signage?

No. The sleeve provides reflective identification and delineation of a designated point. It should be used as part of the site's established explosives, evacuation and emergency-management procedures and does not automatically replace mandatory signage, alarms, barriers, communications or other required controls.

Are Explosive Evacuation Point Reflective Delineation Sleeves Australian Made?

Yes. Global Safety Industries manufactures the Reflective Delineation Sleeve range in Australia.
