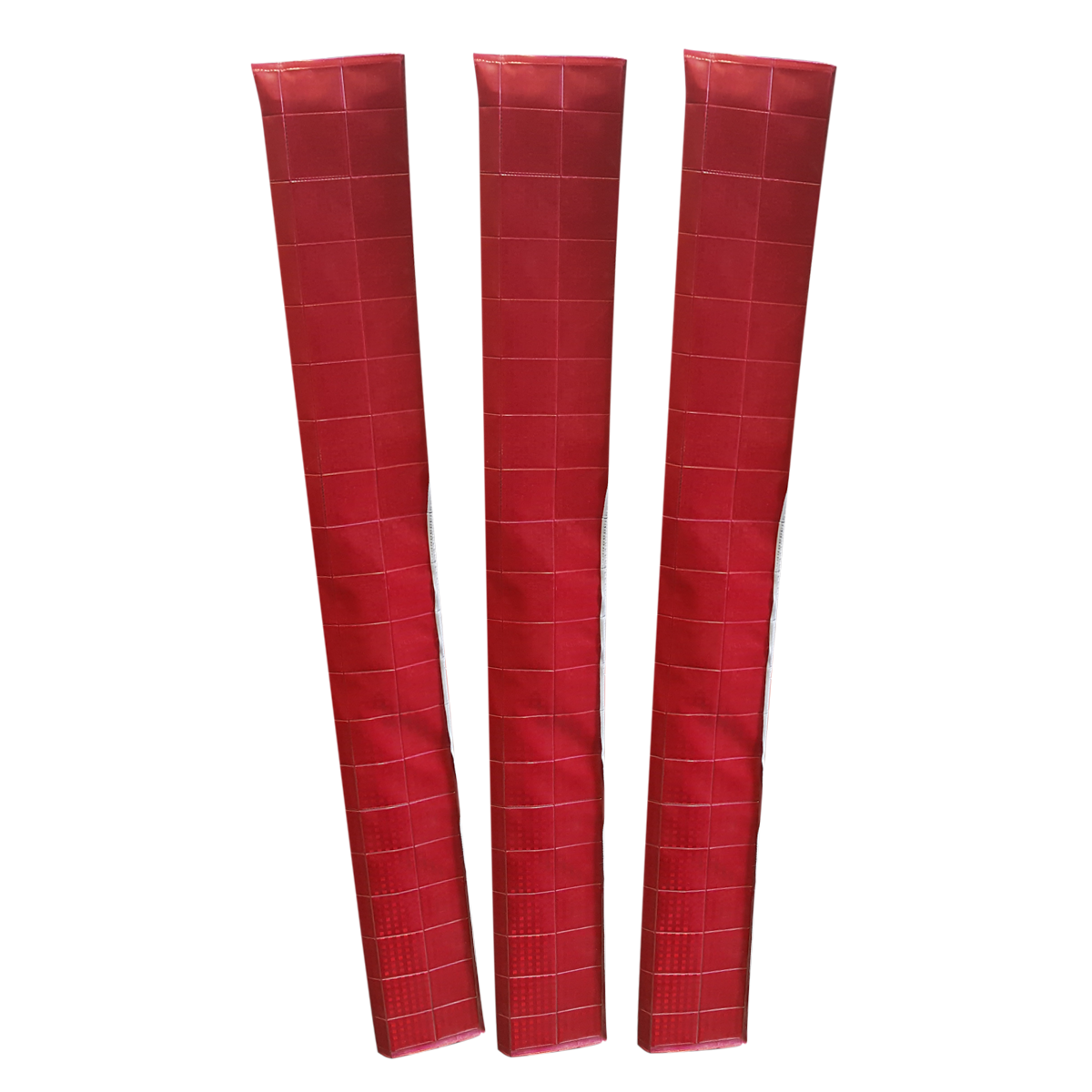

Global Safety Industries Red Reflective Delineation Sleeves are Australian Made, double-sided reflective sleeves designed to provide high-visibility post and bollard delineation with distinctive red reflective identification. Manufactured from CL400 Class 1W retroreflective material, the sleeves create an extended reflective surface for compatible posts, bollards and guide markers used across mining, construction, civil and industrial environments.

Each sleeve combines a CL400 Class 1W reflective outer with a reinforced PVC vinyl liner and fuse-welded construction for strength, flexibility and repeated outdoor use. The red reflective surface provides a highly visible method of identifying designated posts, bollards, areas or site features where red forms part of an established site-specific colour-coding or delineation system.

Available in five standard sizes, the Red Reflective Delineation Sleeve range can be configured for different post, guide marker and bollard applications. The double-sided reflective construction provides visibility from opposing viewing directions, making the sleeves suitable for sites requiring distinctive colour identification together with increased daytime, low-light and nighttime delineation.

Main Advantage

The Red Reflective Delineation Sleeve provides an extended reflective identification surface over compatible posts and bollards. Instead of relying on a small reflective patch or separate colour marker, the sleeve increases the visible reflective area while providing distinctive red identification that can be incorporated into established site-specific colour-coding and delineation systems.

Red Reflective Identification

The Red configuration is designed for applications where posts, bollards, guide markers or designated locations need to be readily distinguished using a red reflective surface. The distinctive colour can assist with visual identification where red has been assigned a specific purpose under the site's established procedures or project specifications.

Colour meanings can vary between sites, industries and applications. Red Reflective Delineation Sleeves should therefore be deployed according to the applicable site colour-coding system, project specification or established identification procedure rather than assuming a universal meaning for the colour.

Available Red Reflective Sleeve Sizes

• 125 × 750mm – designed for Steel Flex and Star Picket Guide Posts
• 140 × 500mm – suited to Semi-Rigid and PVC Plastic Guide Posts
• 140 × 1000mm – provides extended reflective coverage for increased post visibility
• 200 × 750mm – suited to PU Poly Guide Posts, bollards and larger supports
• 200 × 1000mm – extended coverage for PU Poly Guide Posts, T Top Bollards and larger post applications
• Custom sizes can be manufactured for project-specific requirements

Material & Construction

The reflective outer surface is manufactured from CL400 Class 1W retroreflective material and supported by a reinforced PVC vinyl liner. Fuse-welded construction creates a flexible sleeve designed for demanding mining, construction, civil and industrial applications and repeated outdoor use.

The flexible construction allows the sleeve to fit over compatible posts and bollards rather than relying on exposed adhesive reflective tape. This creates a larger red reflective surface for increased visibility and distinctive site identification.

Double-Sided Red Reflective Surface

The Red Reflective Delineation Sleeve provides a double-sided reflective surface, helping compatible posts and bollards remain visible from opposing viewing directions. This makes the sleeve suitable for locations where personnel, vehicles or mobile equipment may approach the delineated point from different directions.

The extended red reflective surface can also support site-specific colour identification, allowing designated locations, routes, assets or operational areas to be visually distinguished according to established site procedures.

Features & Benefits

• CL400 Class 1W retroreflective material
• Distinctive red reflective identification
• Double-sided reflective construction
• Extended reflective surface for increased post and bollard visibility
• Suitable for site-specific colour-coding and identification systems
• Reinforced PVC vinyl liner for additional support and durability
• Fuse-welded flexible sleeve construction
• Fits over compatible posts, bollards and guide markers
• Five standard sleeve sizes available
• Custom sizes available for project-specific applications
• Suitable for mining, construction, civil and industrial environments
• Australian Made by Global Safety Industries

Suitable Industries & Applications

Red Reflective Delineation Sleeves are suitable for mining, quarrying, construction, civil and heavy industrial environments where compatible posts or bollards require increased reflective visibility together with distinctive colour identification.

Common applications include area identification, worksite delineation, guide post identification, bollard identification, designated routes, operational zones, asset locations, site boundaries and other applications where red forms part of an established site-specific colour-coding or identification system.

CL400 Class 1W Reflective Material

The sleeve is manufactured from CL400 Class 1W retroreflective material to provide an extended reflective surface along the compatible post, bollard or guide marker. The larger red reflective area helps the delineated location remain visually prominent where increased visibility is required.

Retroreflective material returns incident light towards its source, helping the sleeve become more visible when illuminated by vehicle headlights, mobile equipment lighting or other directed lighting during low-light and nighttime operations.

Five Sizes for Different Post & Bollard Applications

The Red Reflective Delineation Sleeve range provides five standard configurations for different support types. The 125 × 750mm sleeve is designed for Steel Flex and Star Picket Guide Posts, while the 140mm-wide configurations suit Semi-Rigid and PVC Plastic Guide Posts.

The wider 200mm configurations are suited to PU Poly Guide Posts, bollards and larger supports. The 1000mm-long configurations provide extended reflective coverage where a larger red identification surface is required.

Technical Specifications

• Product: Red Reflective Delineation Sleeve
• Colour / Identification: Red
• Reflective Material: CL400 Class 1W retroreflective material
• Visibility: Double-sided reflective construction
• Liner: Reinforced PVC vinyl liner
• Construction: Fuse-welded flexible sleeve
• Standard Sizes: 125 × 750mm, 140 × 500mm, 140 × 1000mm, 200 × 750mm and 200 × 1000mm
• Custom Sizes: Available for project-specific requirements
• Compatible Applications: Steel Flex Guide Posts, Star Picket Guide Posts, Semi-Rigid Guide Posts, PVC Plastic Guide Posts, PU Poly Guide Posts, T Top Bollards and compatible larger supports
• Applications: Area identification, reflective delineation, guide post identification, bollard identification and worksite demarcation
• Manufacturing Origin: Australian Made

Site & Public-Road Applications

A Red Reflective Delineation Sleeve is an identification and delineation product and should not automatically be treated as a substitute for mandatory signs, barriers, exclusion controls, traffic signs, asset markers or other safety measures required under a site safety-management or traffic-management system. The meaning assigned to red identification may vary between sites, industries and projects and should be confirmed against the applicable site procedures or project specifications. Where the sleeve is proposed for a regulated worksite or public-road application, confirm the required colour, signage, placement and project specification with the responsible site operator, safety professional, traffic-management professional or relevant authority before use.

Frequently Asked Questions

What is a Red Reflective Delineation Sleeve?

It is a flexible, double-sided reflective sleeve designed to fit over compatible posts, bollards and guide markers while providing a distinctive red reflective surface for increased visibility and site-specific identification.

What does the red colour identify?

The meaning of red identification can vary between sites, industries and applications. The sleeve should be used according to the site's established colour-coding system, procedures or project specifications rather than assuming a universal meaning for the colour.

What reflective material is used?

The sleeve is manufactured using CL400 Class 1W retroreflective material combined with a reinforced PVC vinyl liner and fuse-welded construction.

What sizes are available?

Five standard sizes are available: 125 × 750mm, 140 × 500mm, 140 × 1000mm, 200 × 750mm and 200 × 1000mm. Custom sizes can also be manufactured for project-specific requirements.

Is the red reflective surface visible from both sides?

Yes. The sleeve uses a double-sided reflective configuration to provide reflective visibility from opposing viewing directions.

Which posts and bollards can the sleeves be used with?

The range includes sizes designed for Steel Flex and Star Picket Guide Posts, Semi-Rigid and PVC Plastic Guide Posts, PU Poly Guide Posts, T Top Bollards and other compatible post or bollard applications.

Where can Red Reflective Delineation Sleeves be used?

Typical applications include mines, quarries, construction sites, civil works and industrial facilities where red reflective identification forms part of an established site-specific colour-coding, delineation or identification system.

Does a Red Reflective Delineation Sleeve replace required safety or traffic signage?

No. The sleeve provides reflective identification and delineation only. It does not automatically replace mandatory safety signs, traffic signs, barriers, exclusion controls or other required safety measures.

Are Red Reflective Delineation Sleeves Australian Made?

Yes. Global Safety Industries manufactures the Reflective Delineation Sleeve range in Australia.
